Precision Micro Worm Gears for High-Performance Applications
Global OEM/ODM Partner. Module 0.2-1.5 micron-level tolerance.
YEARS EXPERIENCE
20+
±0.005mm
50+
100%
OUR FACTORY STRENGTH
Advanced Manufacturing for Complex Micro Geometries

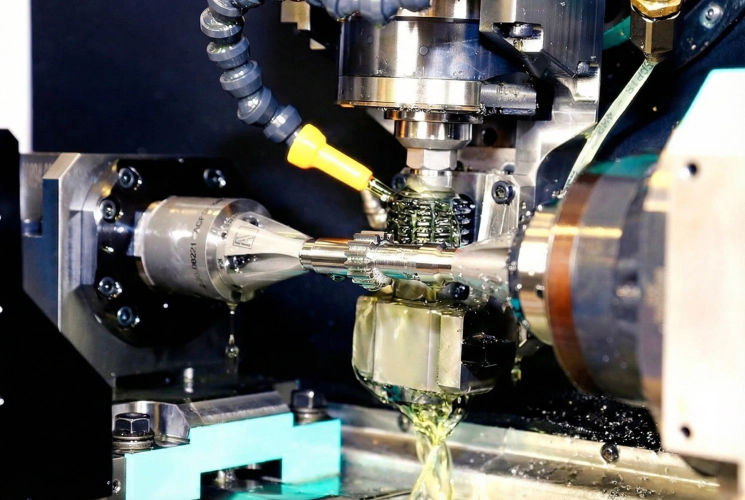

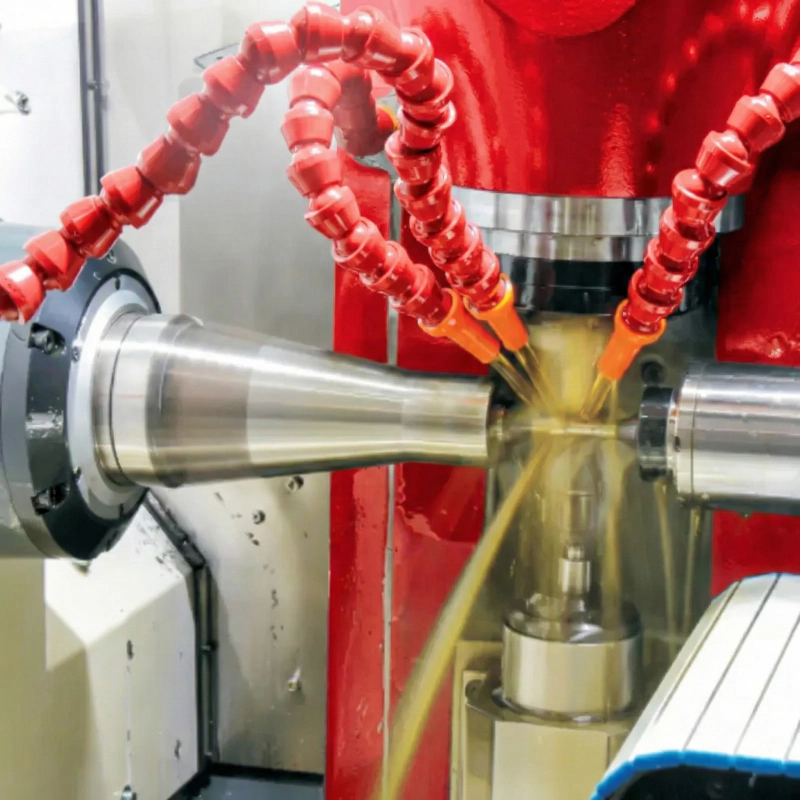

High-Speed CNC Hobbing
We operate not merely as a supplier, but as a specialized extension of your engineering department. Leveraging over two decades of expertise in micro-transmission systems, we help you navigate complex geometry challenges—from DFM (Design for Manufacturing) analysis to mass production. Our team ensures that every gear mesh is optimized for noise reduction, efficiency, and longevity in your specific application.
Beyond Micro-Precision: Your Integrated Industrial Partner
Leveraging our advanced manufacturing capabilities, we have expanded our portfolio to serve Heavy Industry, Agriculture, and Environmental sectors. Streamline your global procurement by consolidating your supply chain with us.
Power Transmission Systems
Heavy-duty solutions designed for high torque and durability.
Product List:
-
Gearboxes: Agricultural & Industrial Gearboxes (Helical, Bevel, Planetary).
-
Drive Components: Industrial Drive Shafts, PTO Shafts, Pulleys, and Universal Joints.
-
Linear Motion: Precision Racks & Pinions, Chains & Sprockets.
Fluid Power & Machinery
Reliable power sources and fluid control for demanding environments.
Product List:
-
Hydraulics: Telescopic & Tie-rod Hydraulic Cylinders (Agriculture, Mining, Industrial).
-
Pneumatics & Vacuum: High-efficiency Vacuum Pumps & Air Compressors.
-
Power: AC/DC Electric Motors.
Heavy Equipment & Mining
Rugged equipment engineered for harsh field and mining conditions.
Product List:
-
Ag Machinery: Balers, Harvester Parts, and General Ag Accessories.
-
Mining: Crushers, Mining Transport Equipment, and Wear Parts.
-
Environmental: Regenerative Thermal Oxidizers (RTO) for emission control.
Looking for Custom Solutions?
Whether you need a single precision gear or a complete crushing system, our engineering team is ready to assist. We accept OEM/ODM orders with full customization.
Precision Micro Transmission Solutions
From standalone components to fully assembled gearboxes, we deliver customized solutions engineered for compact spaces and high-torque requirements.
Precision Brass Worm Gears
Engineered for smooth, quiet transmission in precision instruments. We utilize high-grade C3604 brass to ensure excellent wear resistance and self-lubricating properties perfect for long-lifecycle applications.
-
Module: 0.2 – 1.0
-
Accuracy: DIN Class 6-8
-
Material: Brass (C3604, C3602), Bronze

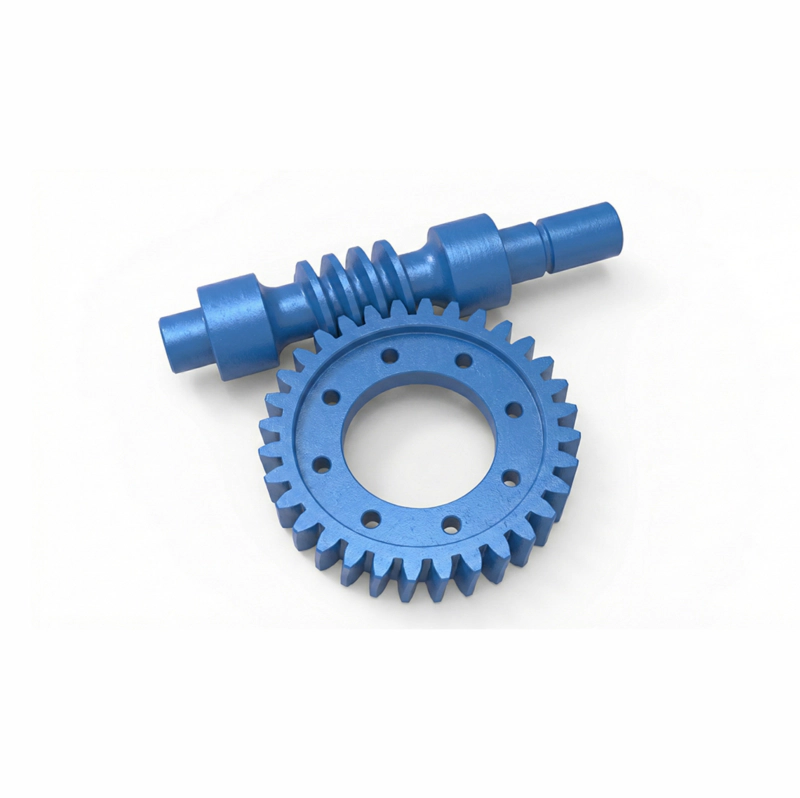

Hardened Steel Worm Shafts
High-strength shafts featuring precision-ground lead angles for maximum efficiency. Our CNC turning and grinding processes ensure concentricity and superior surface finishes (Ra 0.4 or better).
-
Material: SUS303, SUS304, 40Cr
-
Hardness: HRC 45-55 (Heat Treated)
-
Thread Type: Single / Multi-start

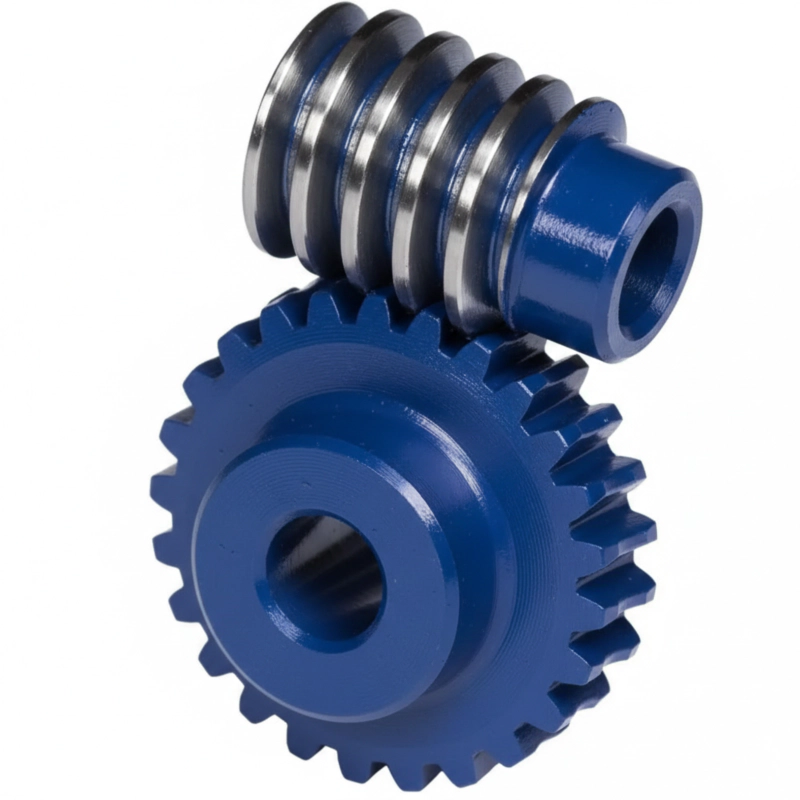

Custom Micro Gear Sets
Complete reduction solutions optimized for minimal backlash and high transmission efficiency. We calculate and manufacture matched sets to ensure the perfect center distance and mesh quality.
-
Reduction Ratio: 10:1 to 100:1
-
Backlash: < 3 arcmin available
-
App: Actuators & Micro-motors
Rigorous Quality Assurance: Zero Defect Policy
In the world of micro-mechanics, a deviation of a single micron can lead to system failure. Our quality management system is integrated into every stage of production, from raw material verification to final packaging. We utilize advanced metrology equipment to validate that every gear meets strict ISO and AGMA standards before it leaves our factory.
Dual-Flank Roll Testing
100% inspection of Total Composite Error (Fi”) and Tooth-to-Tooth Error (fi”) using advanced gear mesh testers to guarantee smooth transmission.
3D CMM Verification
Utilizing Zeiss/Mitutoyo CMMs and Vision Measurement Systems to verify complex geometric tolerances and micron-level dimensions.
Full Material Traceability
We provide mill certificates for all raw materials. All products are fully compliant with RoHS and REACH environmental standards.
ISO 9001:2015 Certified
Standardized SOPs and batch control workflows ensure consistency across high-volume production runs.
Industries We Serve
Empowering innovation across high-precision sectors.
Medical Devices
Reliable, low-noise transmission components for surgical robots, infusion pumps, and diagnostic equipment where failure is not an option.
Automotive Systems
Durable worm gear solutions for seat adjustment motors, electronic parking brakes (EPB), and HVAC actuators.
Robotics & Automation
High-torque, low-backlash micro gears for robotic grippers, finger joints, and precision linear positioning stages.
Optics & Electronics
Ultra-small module gears (M0.2) for camera gimbal stabilization, zoom mechanisms, and smart lock systems.

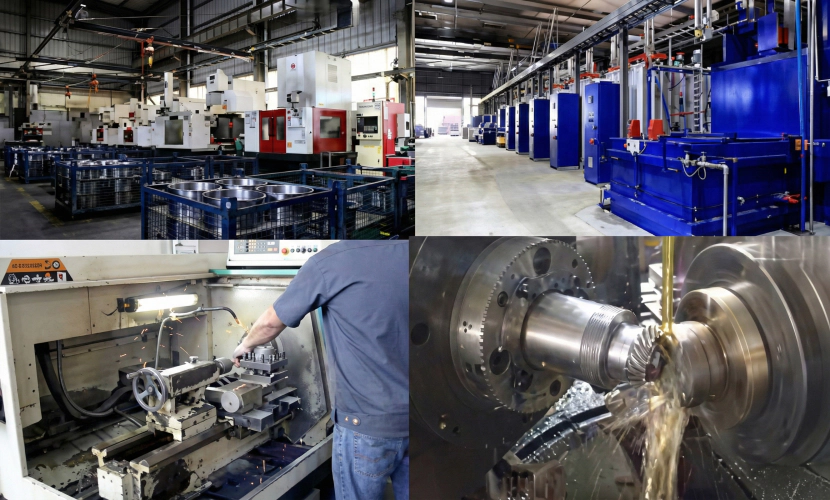

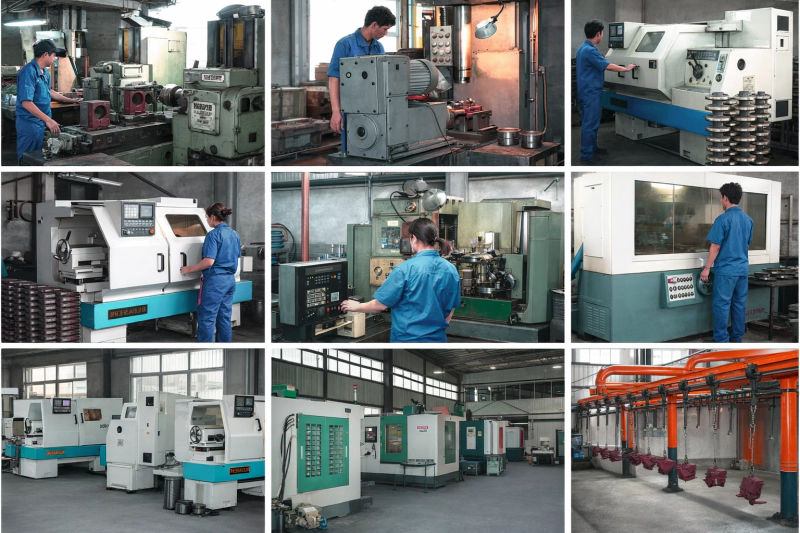

ABOUT OUR FACTORY
Your Strategic Partner for Micro-Precision Transmission
Founded in 2006, we have evolved from a specialized workshop into a global OEM/ODM manufacturer of micro worm gears. Unlike general machining shops, we focus exclusively on the “Micro” niche (Module 0.2 – 1.5). Our 10,000 sqm facility combines Japanese Hamai hobbing technology with a strict ISO 9001:2015 management system, allowing us to deliver reliable transmission solutions for the world’s most demanding medical and robotics applications.
20+ Years Expertise
Deep know-how in minimizing backlash and optimizing gear mesh efficiency.
In-House Engineering
Comprehensive support from DFM analysis to mold design and heat treatment.
Scalable Capacity
Flexible production lines capable of handling both prototype batches (100 pcs) and mass production (1M+ pcs).
